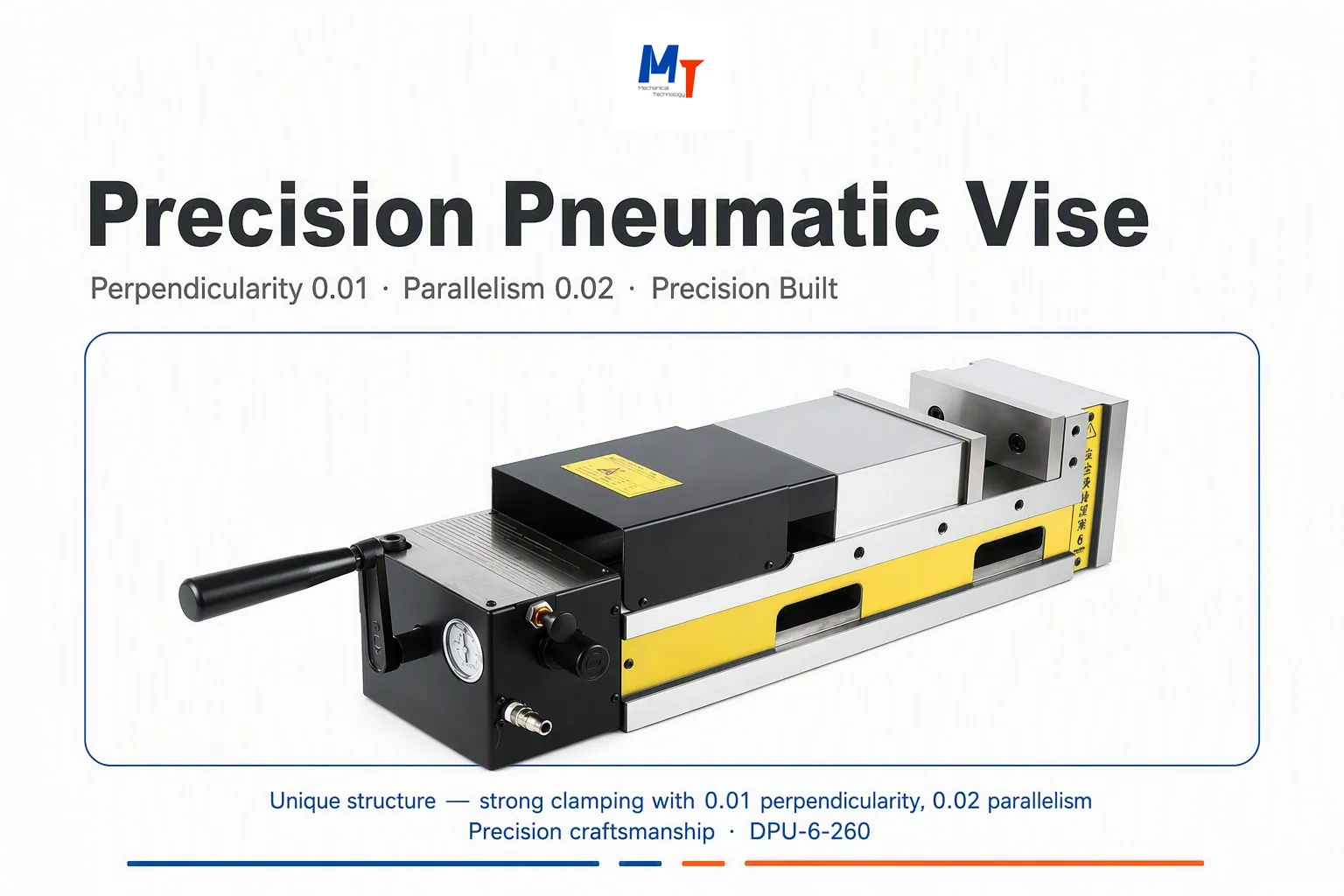

DPU Series Precision Pneumatic Vise
Perpendicularity 0.01 · Parallelism 0.02 · For CNC Machining Centers
A nodular cast iron body with hardened jaw plates and a pneumatic boost clamping mechanism, purpose-built for CNC machining centers, milling machines and grinders. Multiple sizes with max openings from 150-340mm; stable clamping, smooth chip removal and easy maintenance.
- ModelsDPU-5-150 / DPU-6-180 / DPU-6-250 / DPU-6-260 / DPU-6-300 / DPU-8-340
- Jaw Width130 mm (standard)
- Max Opening150 - 340 mm
- AccuracyPerpendicularity 0.01 / parallelism 0.02
- Jaw HardnessHRC 55-58
- Body MaterialNodular cast iron
KEY ADVANTAGES
Key Advantages

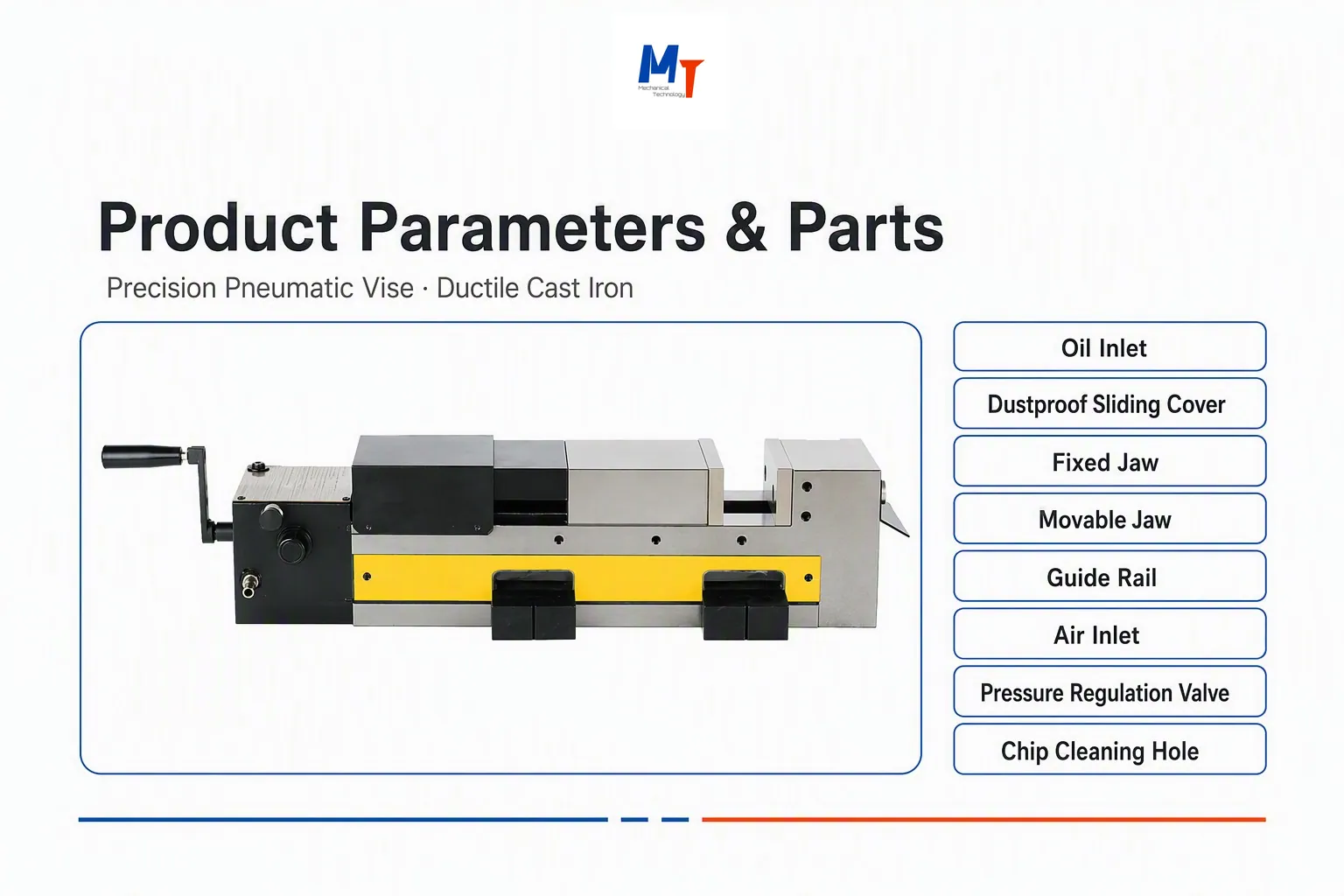

PARAMETERS & PARTS
Parameters & Parts
PRECISION & CLAMPING

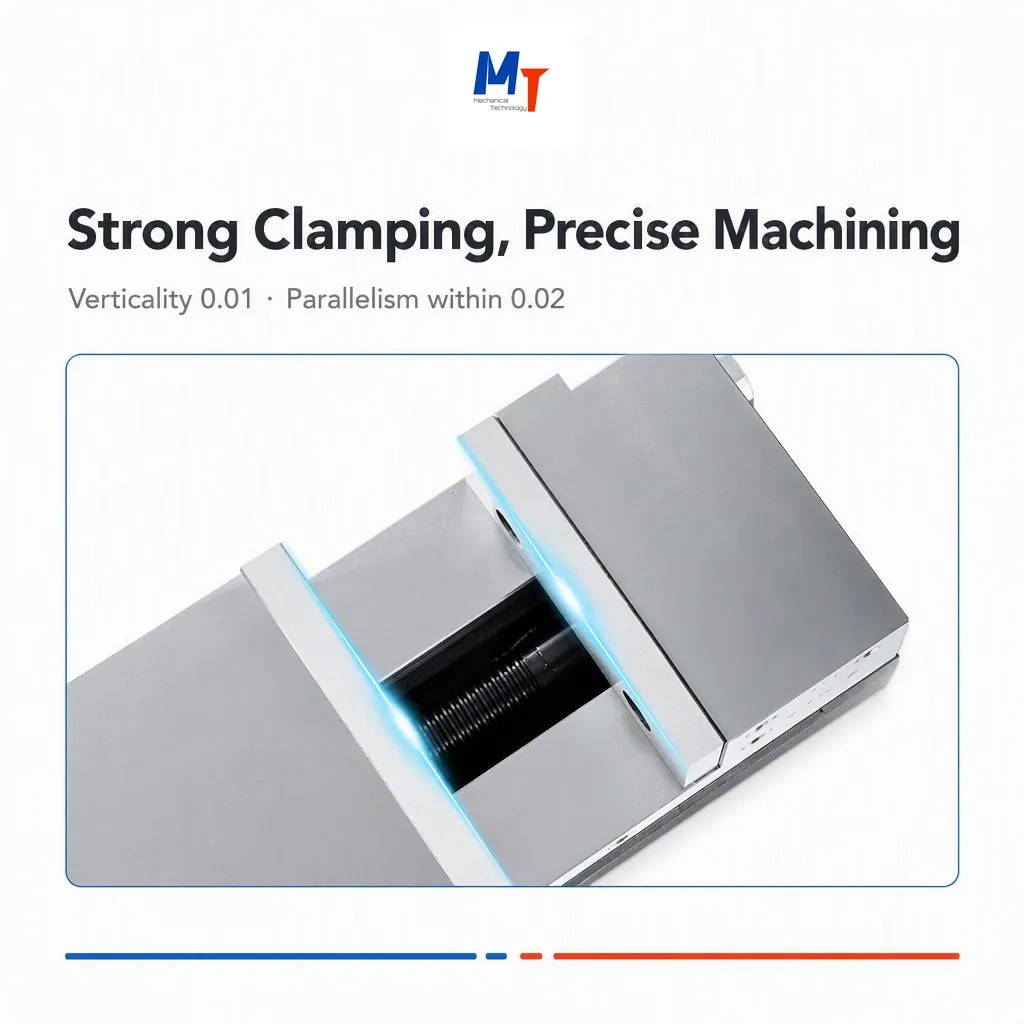

Precision Build & Strong Clamping

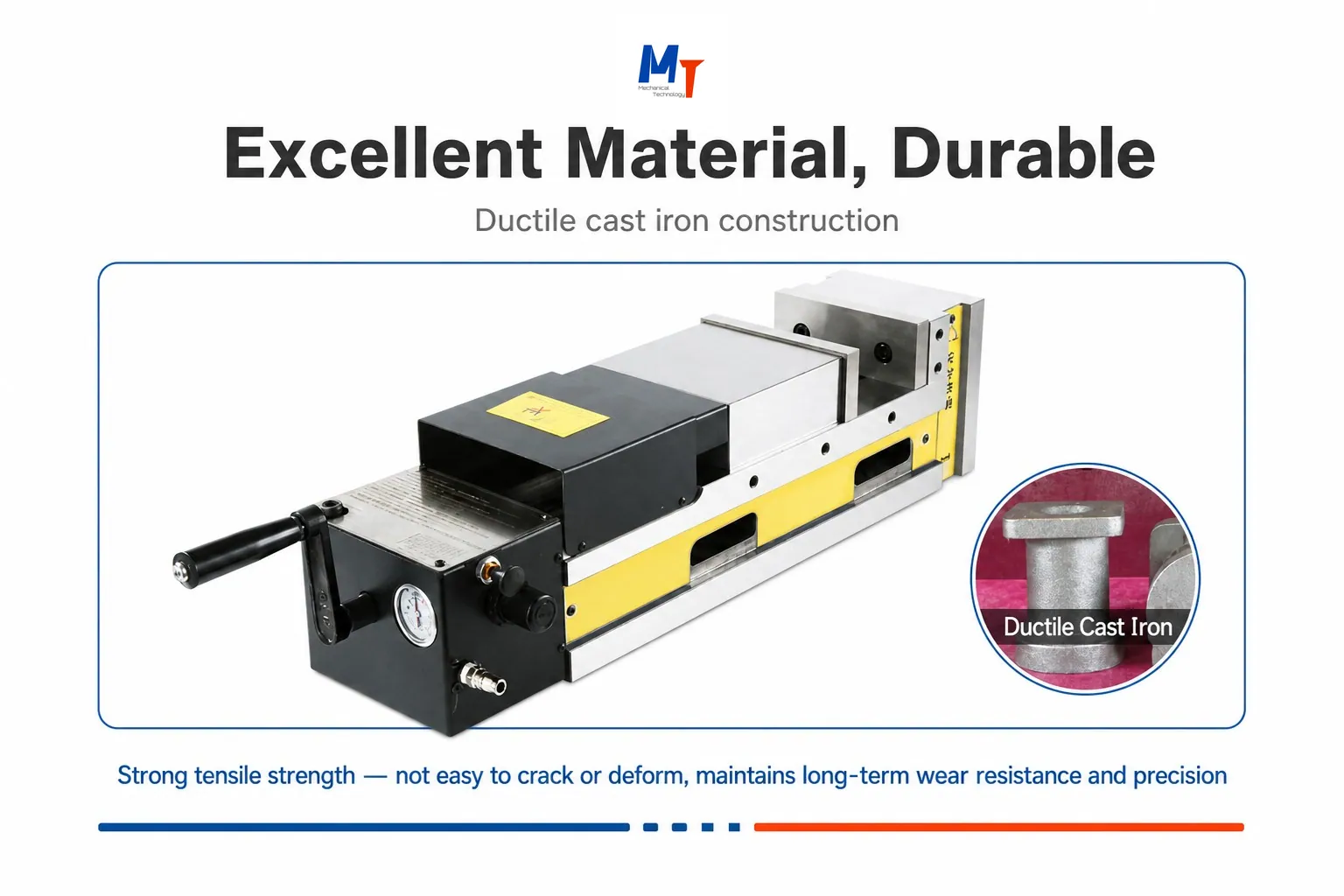

MATERIAL
Nodular Cast Iron Body

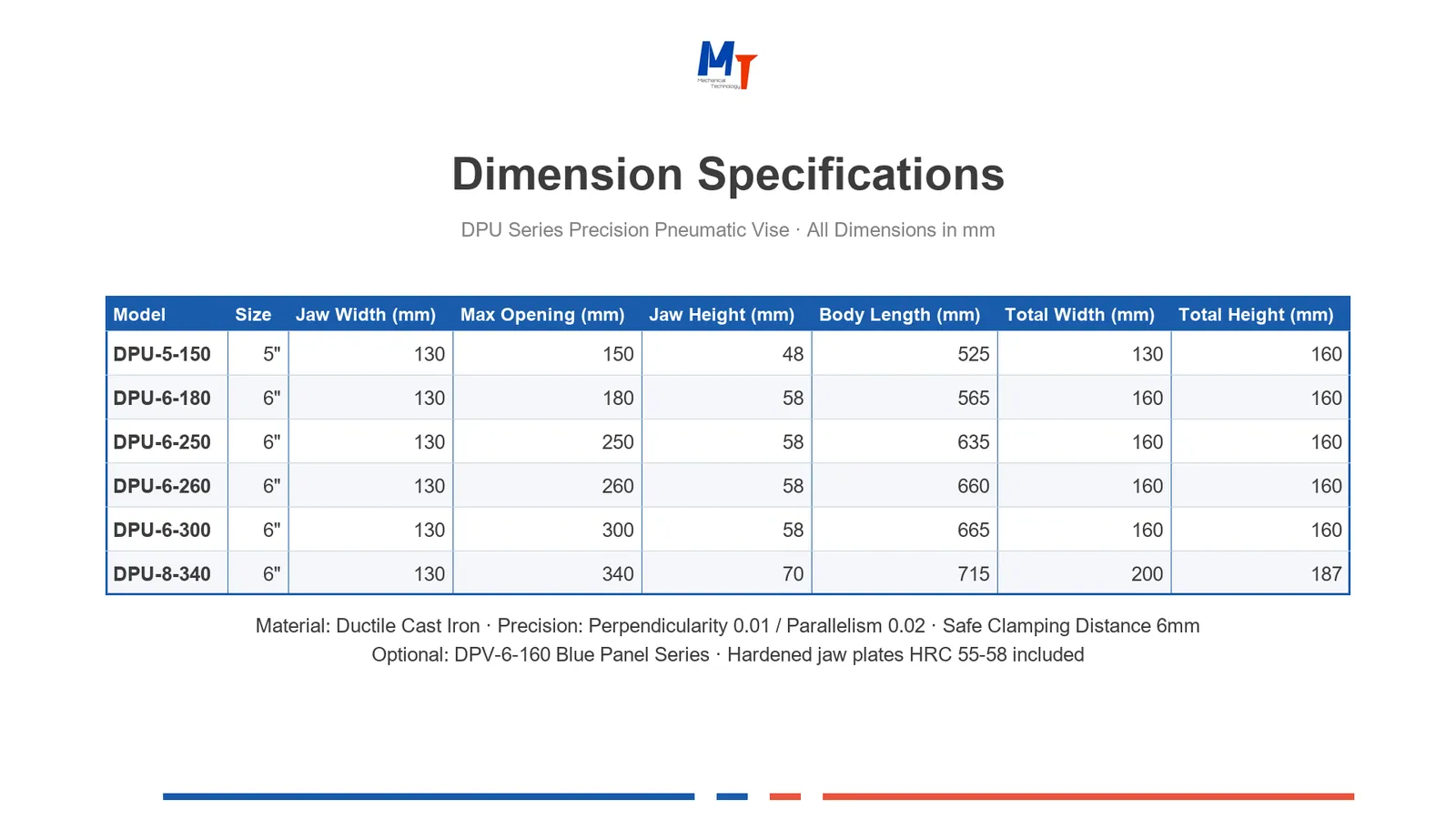

DIMENSIONS
Dimensions

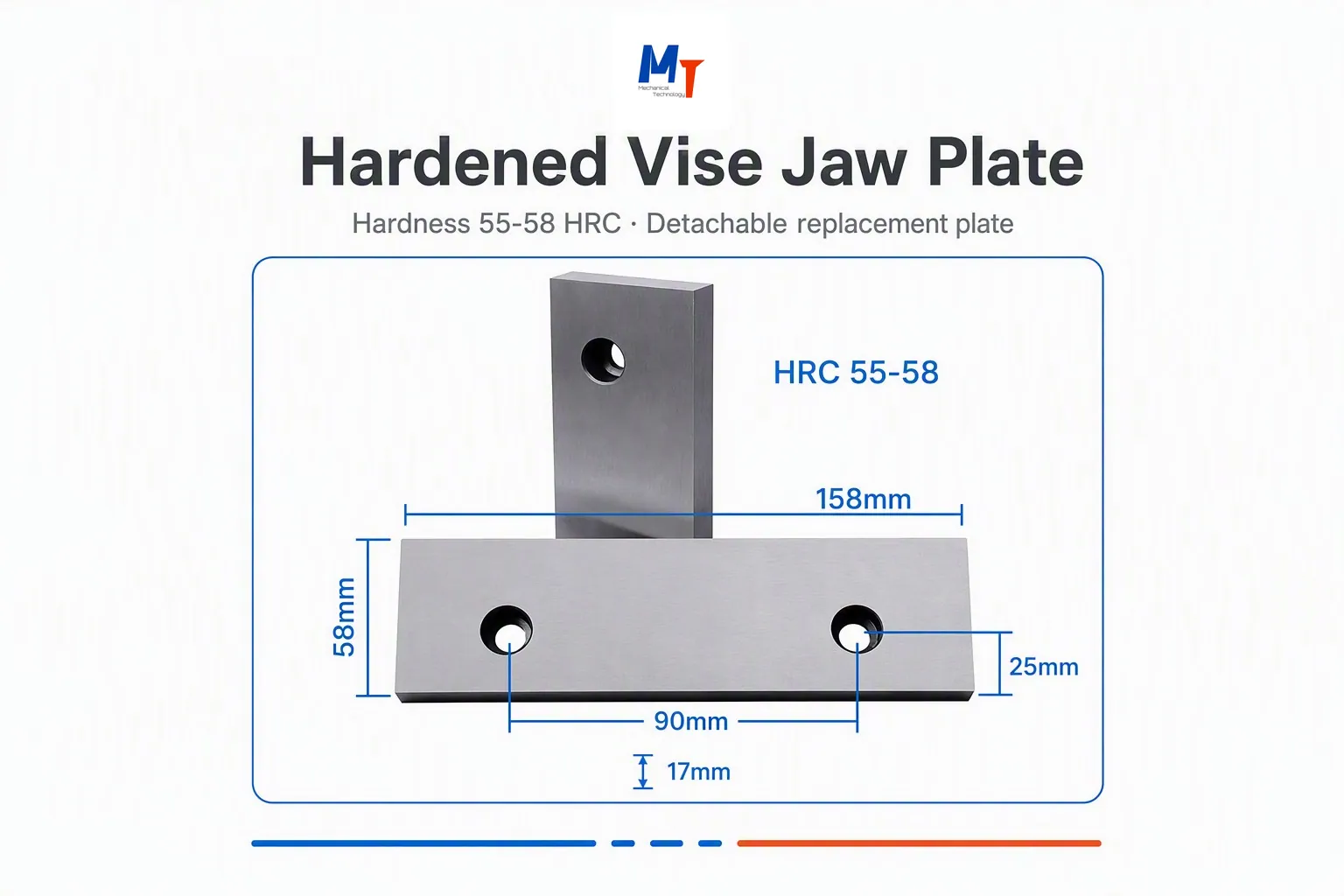

HARDENED JAW PLATE
Hardened Jaw Plate
HRC 55-58, Removable & Replaceable
Jaw plates are hardened and precision-ground for high hardness and wear resistance; the removable design allows quick replacement after wear, reducing long-term costs.
- HRC 55-58 hardness, wear and deformation resistant
- Removable and replaceable, low maintenance cost
- Precision-ground faces ensure machining accuracy

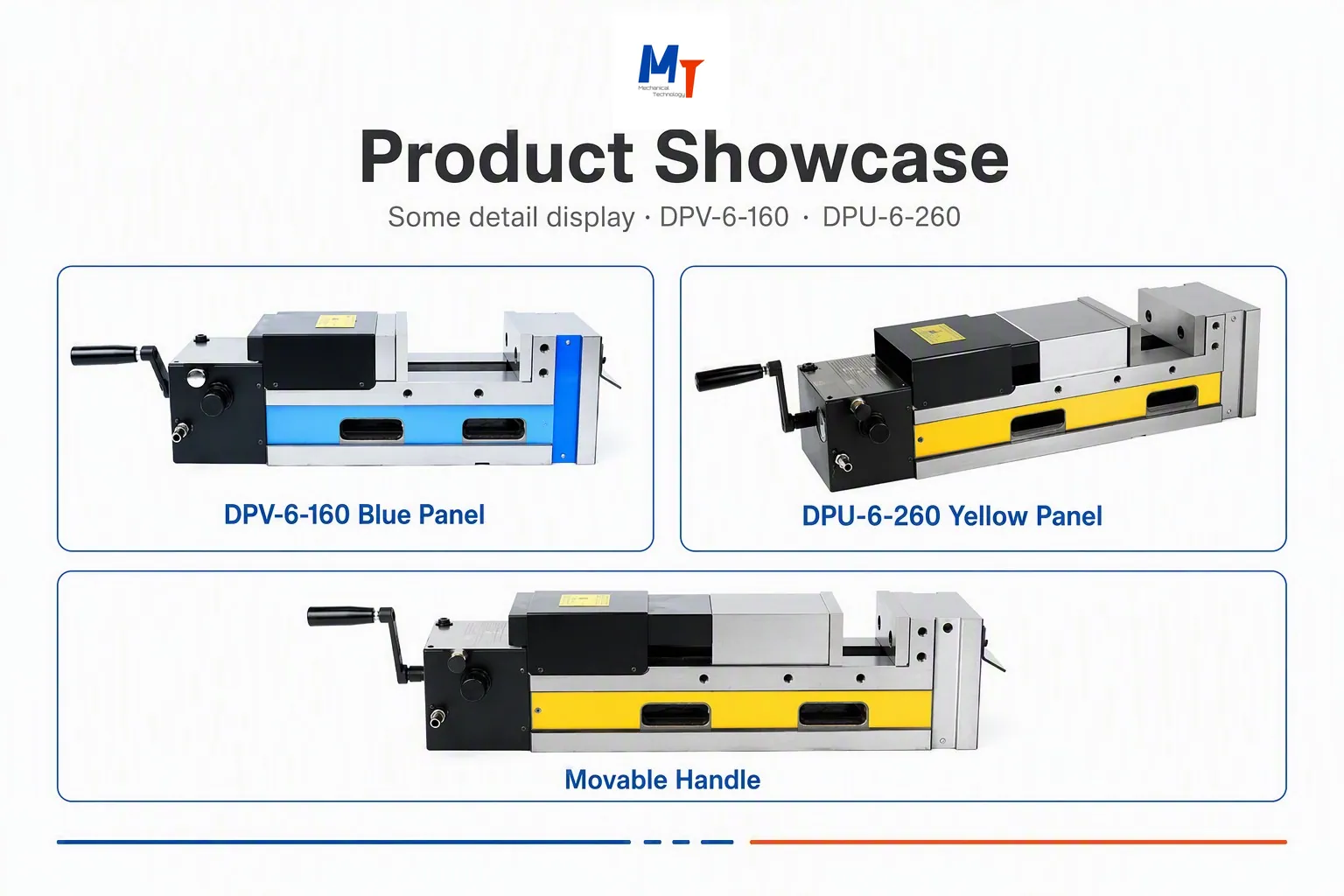

SHOWCASE
Product Showcase

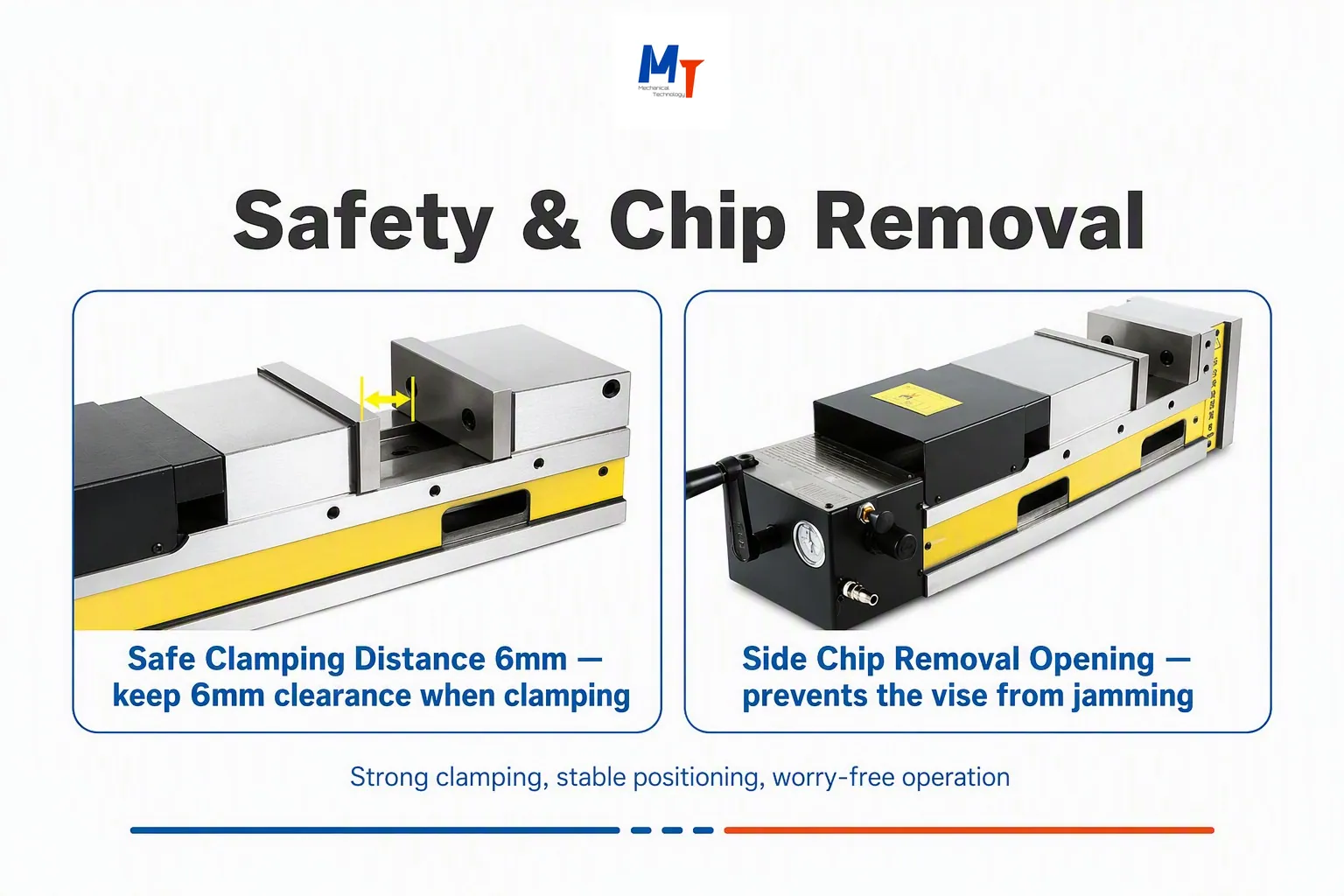

SAFETY & CHIP REMOVAL
Safe Clamping & Chip Removal

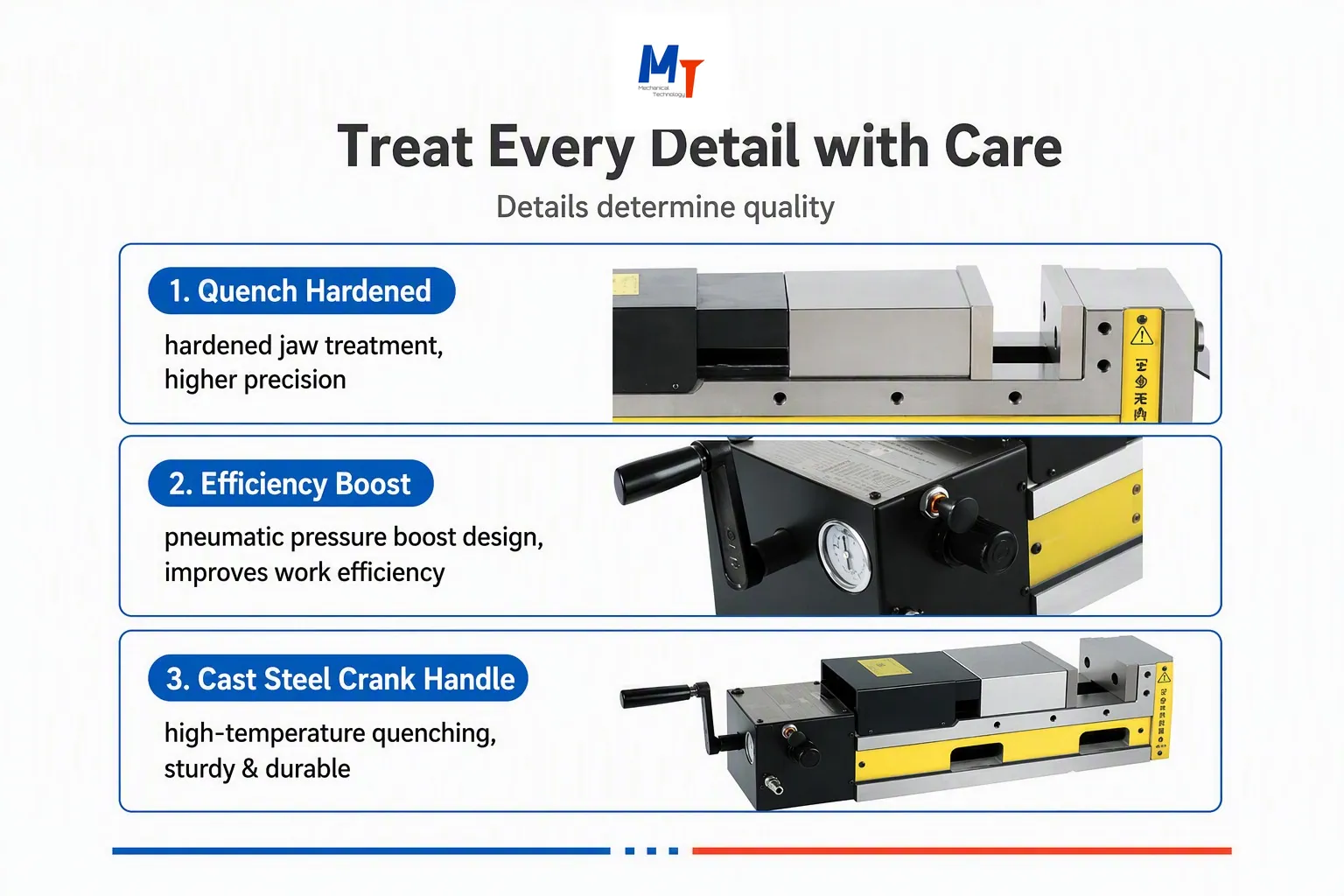

DETAIL CARE

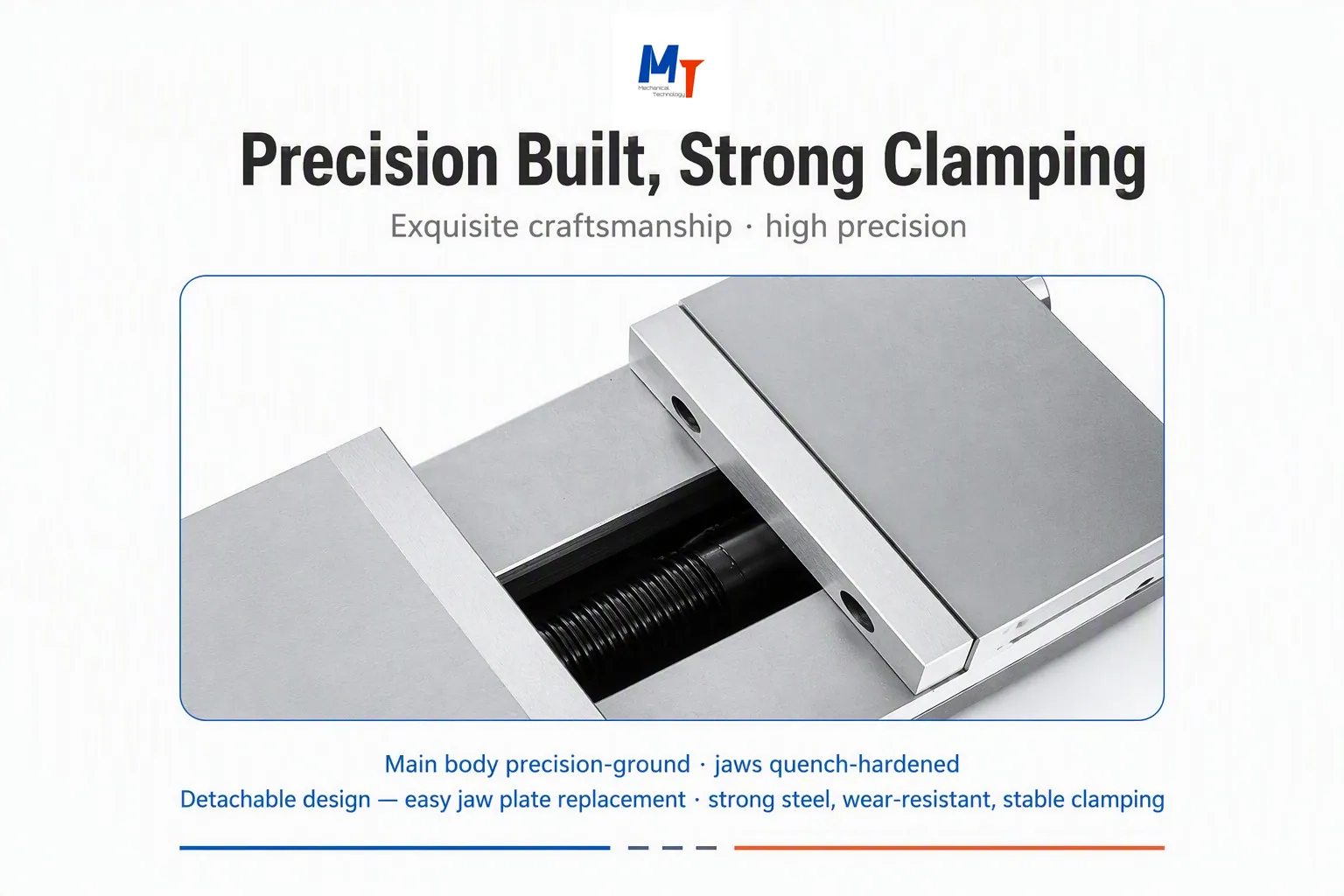

Detail Craftsmanship
Need a DPU Series Quote?
DPU / DPV sizes, custom jaw plates and OEM cooperation available — send us your drawings or samples for a quote.
