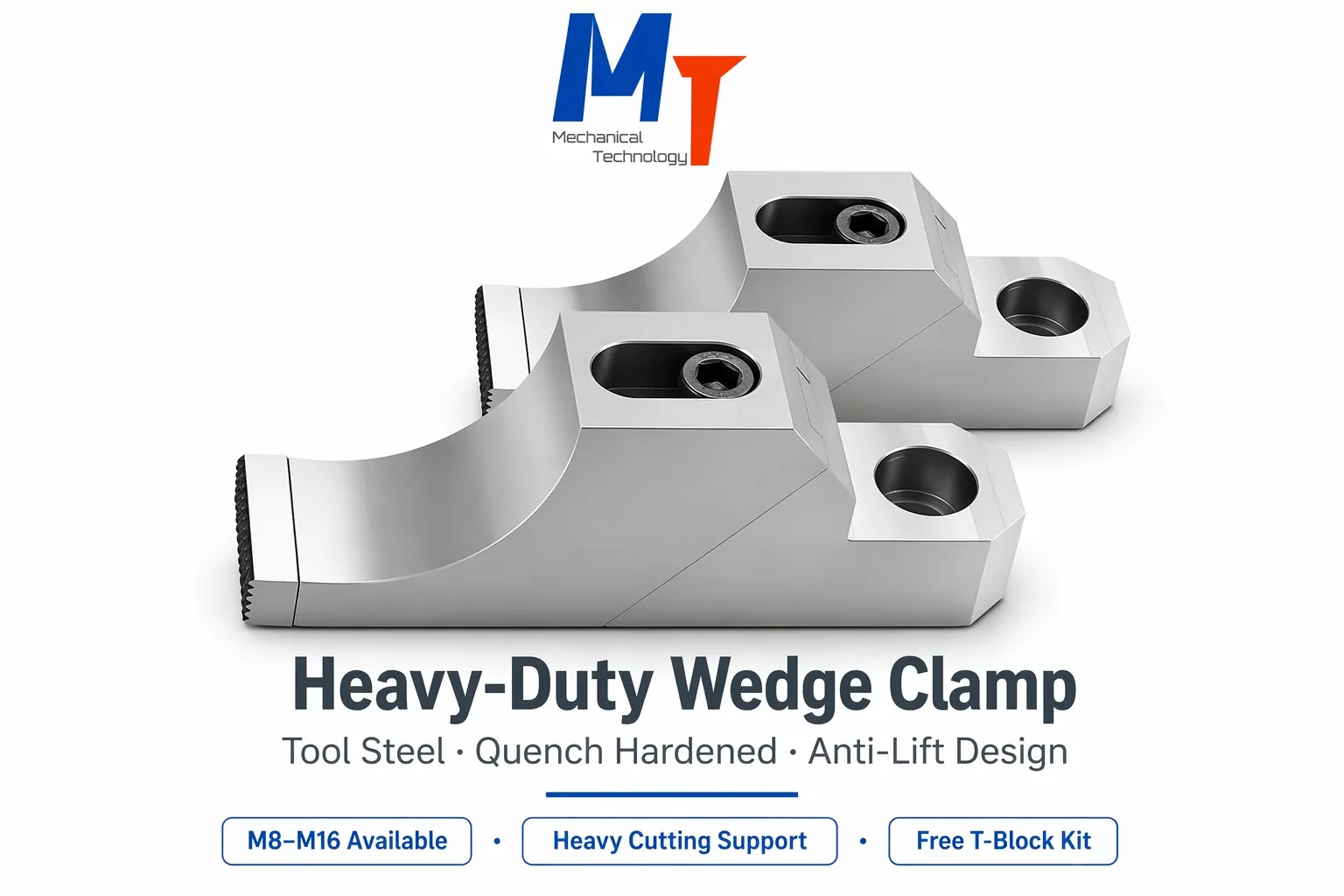

Heavy-Duty Wedge Clamp
Anti-Lift · Heavy Cutting · Quick T-Slot Mounting
A 45° wedge-dovetail design converts horizontal locking force into downward clamping force, preventing workpiece lift during heavy cutting. Made of hardened tool steel at 58-62HRC for long wear life; fits milling machines, CNC machining centers, grinders and drills with T-slot tables.
- MaterialTool steel, hardened 58-62HRC
- SizesM8 / M10 / M12 / M16
- Clamping FaceHeat-treated serrated, anti-slip
- AccessoriesT-nut + screw + jaw insert
KEY FEATURES

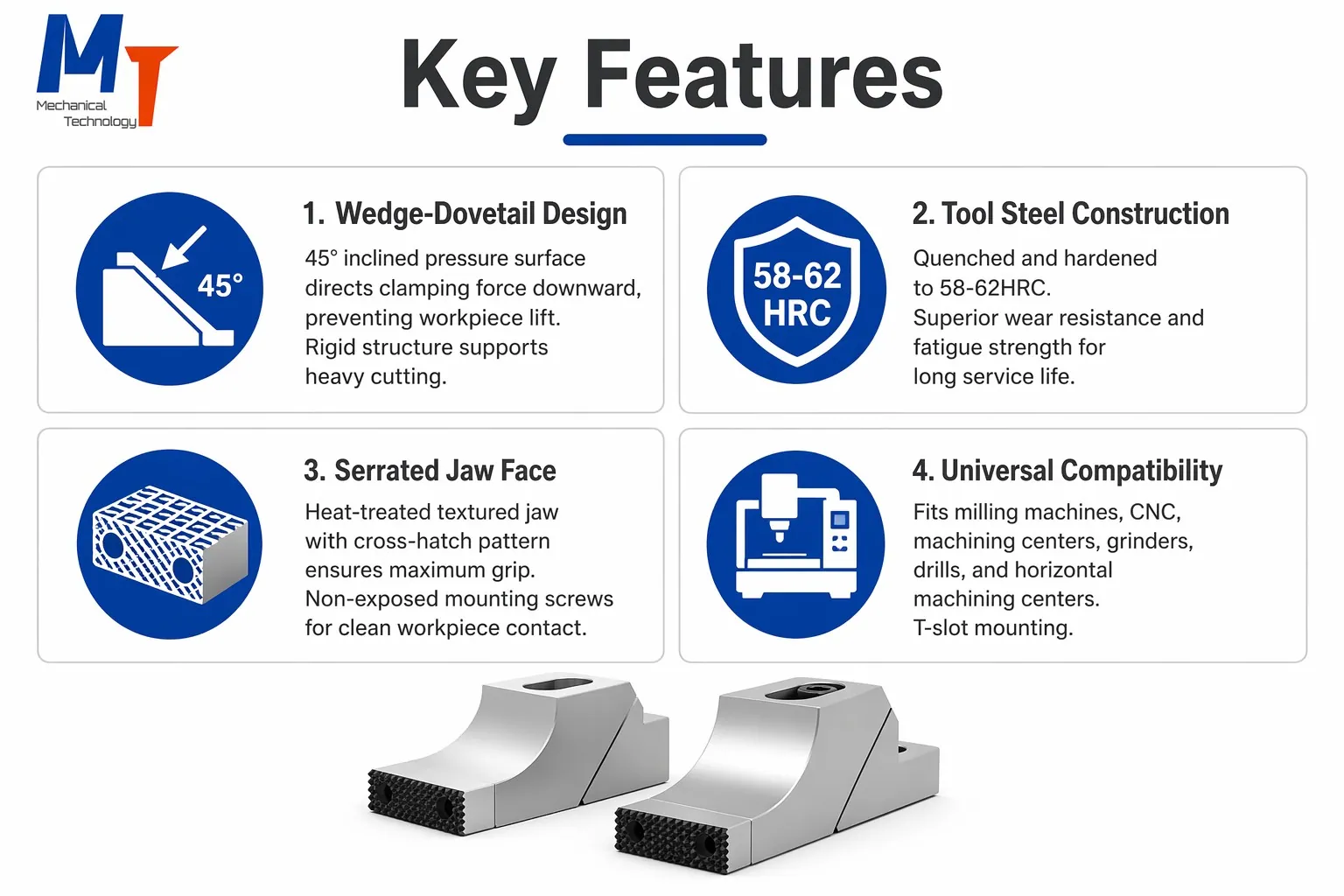

Key Features
HOW IT WORKS
How It Works

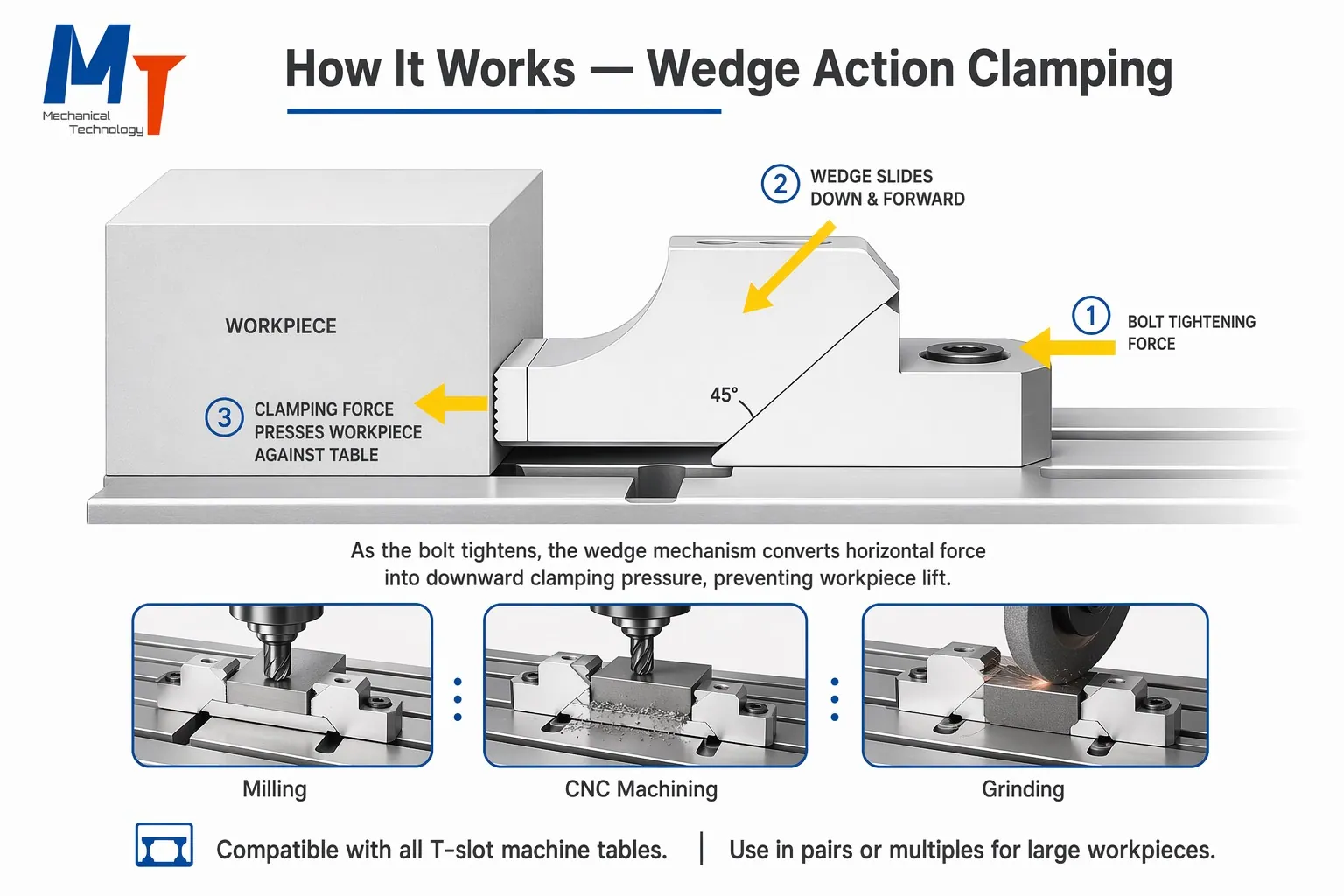

Wedge Clamping — the Harder You Tighten, the Firmer It Holds
As the bolt tightens, the wedge slide moves down and forward along a 45° ramp, converting horizontal locking force into vertical downward clamping force so the workpiece stays firmly against the table.
- 45° pressure face prevents workpiece lift
- Use in pairs or groups for large workpieces
- Compatible with all T-slot machine tables
SIZES

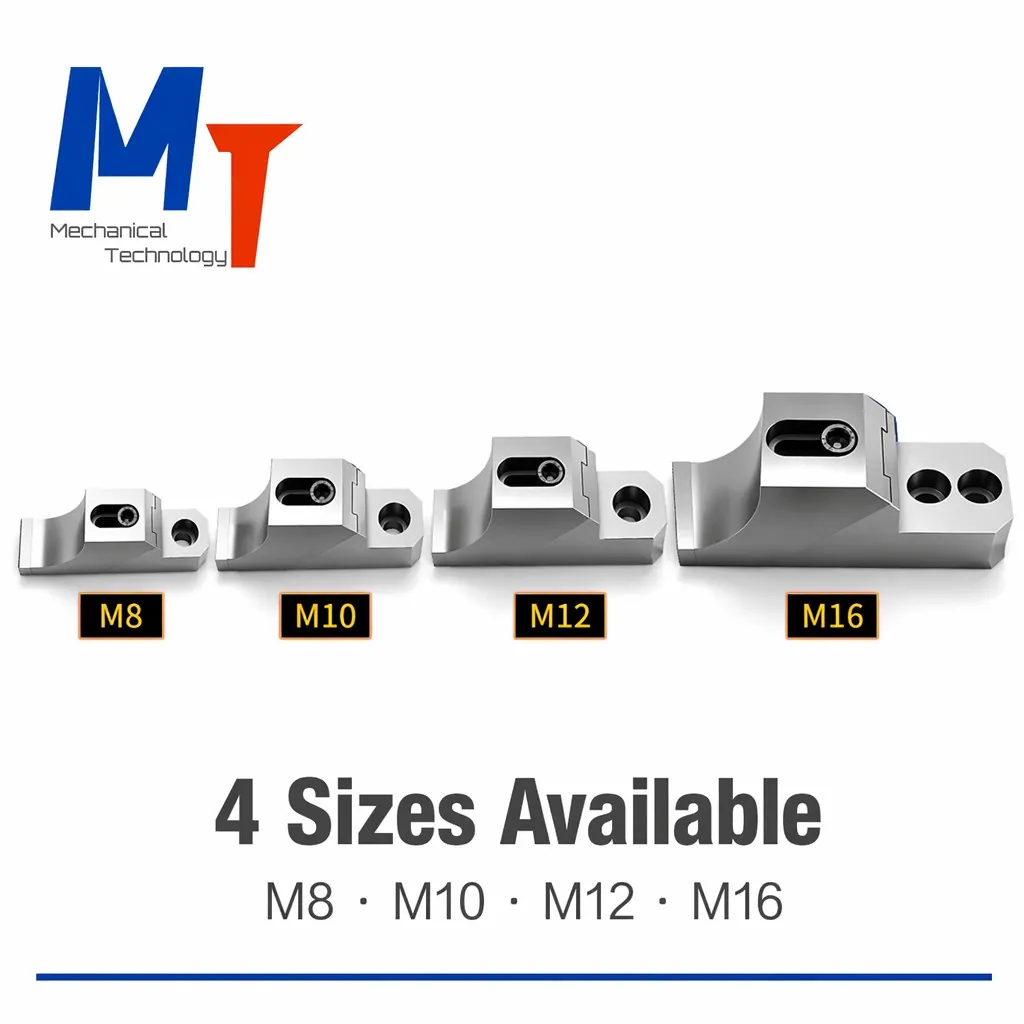

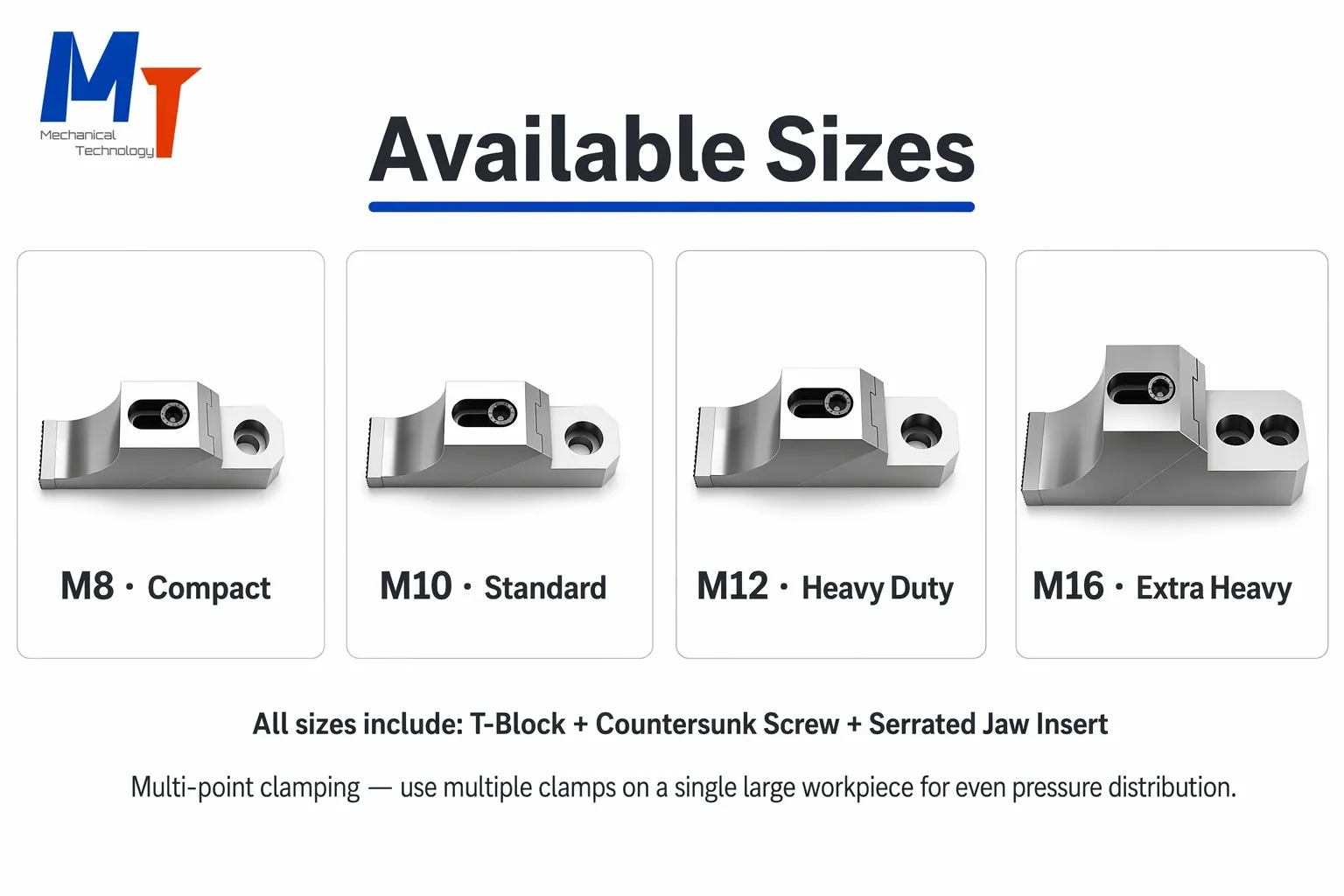

Available Sizes
DETAILS

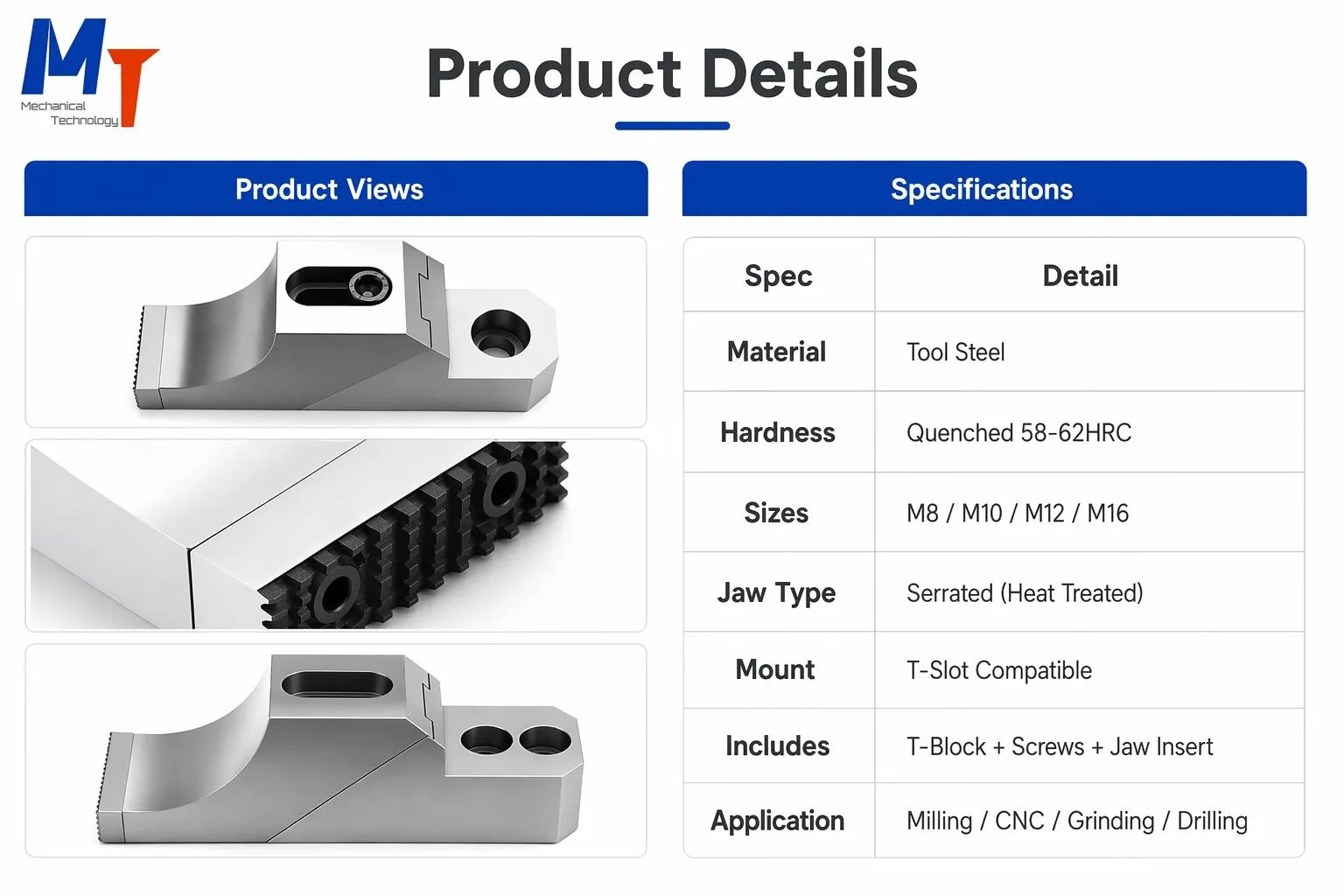

Details & Specifications

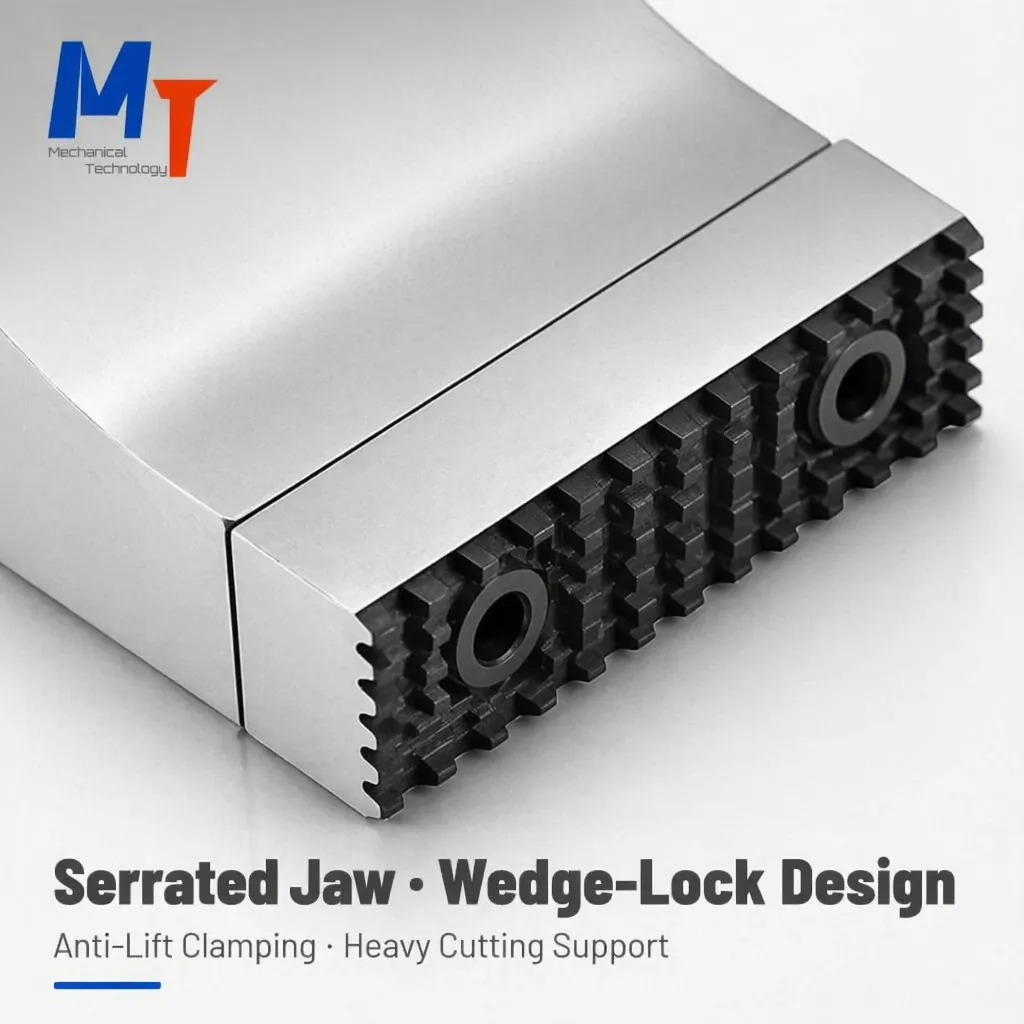

Serrated Jaw · Replaceable Insert
Heat-treated serrated jaws deliver maximum gripping force; the replaceable insert design extends service life. Exposed screws are recessed to avoid interference with the workpiece.
IN ACTION

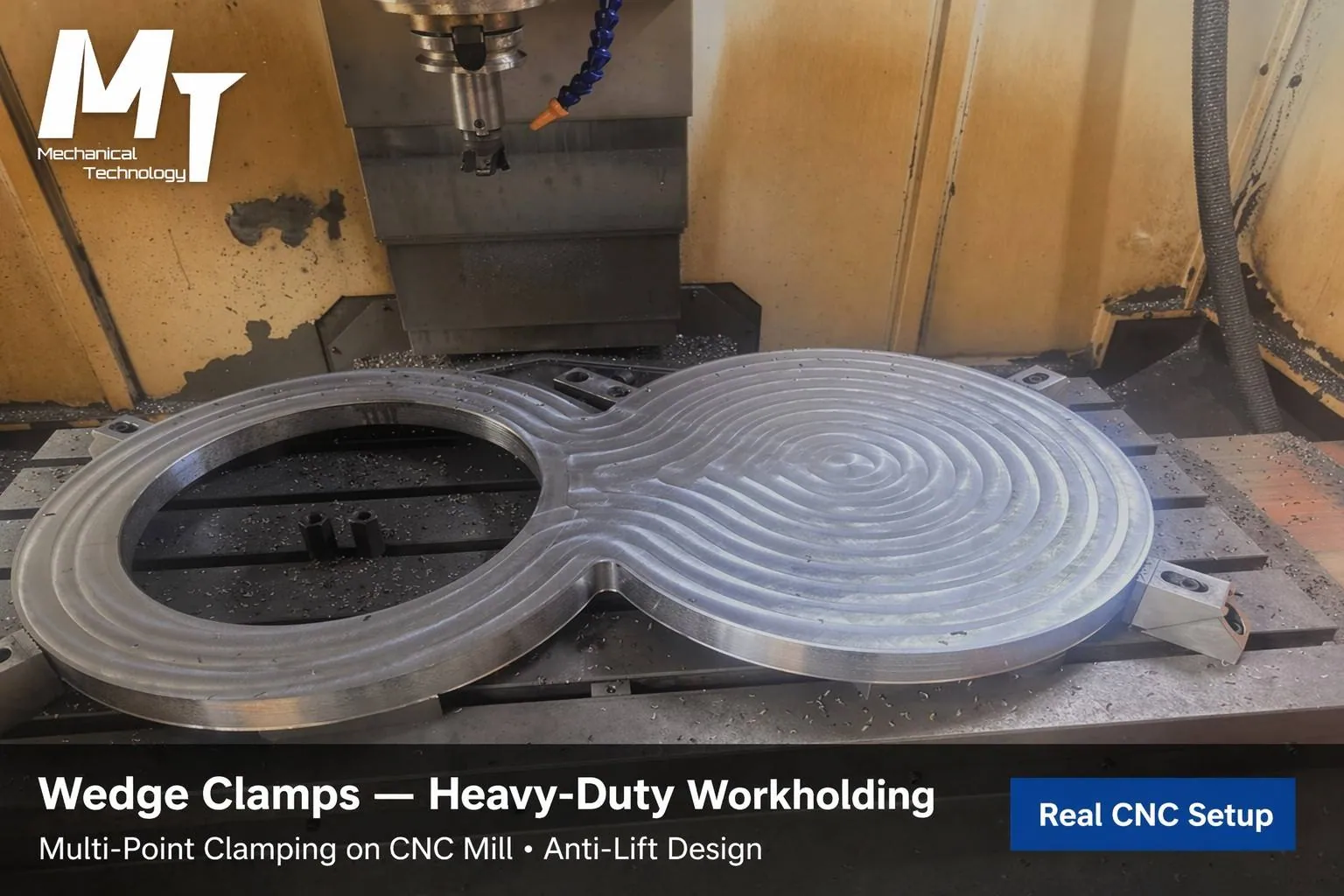

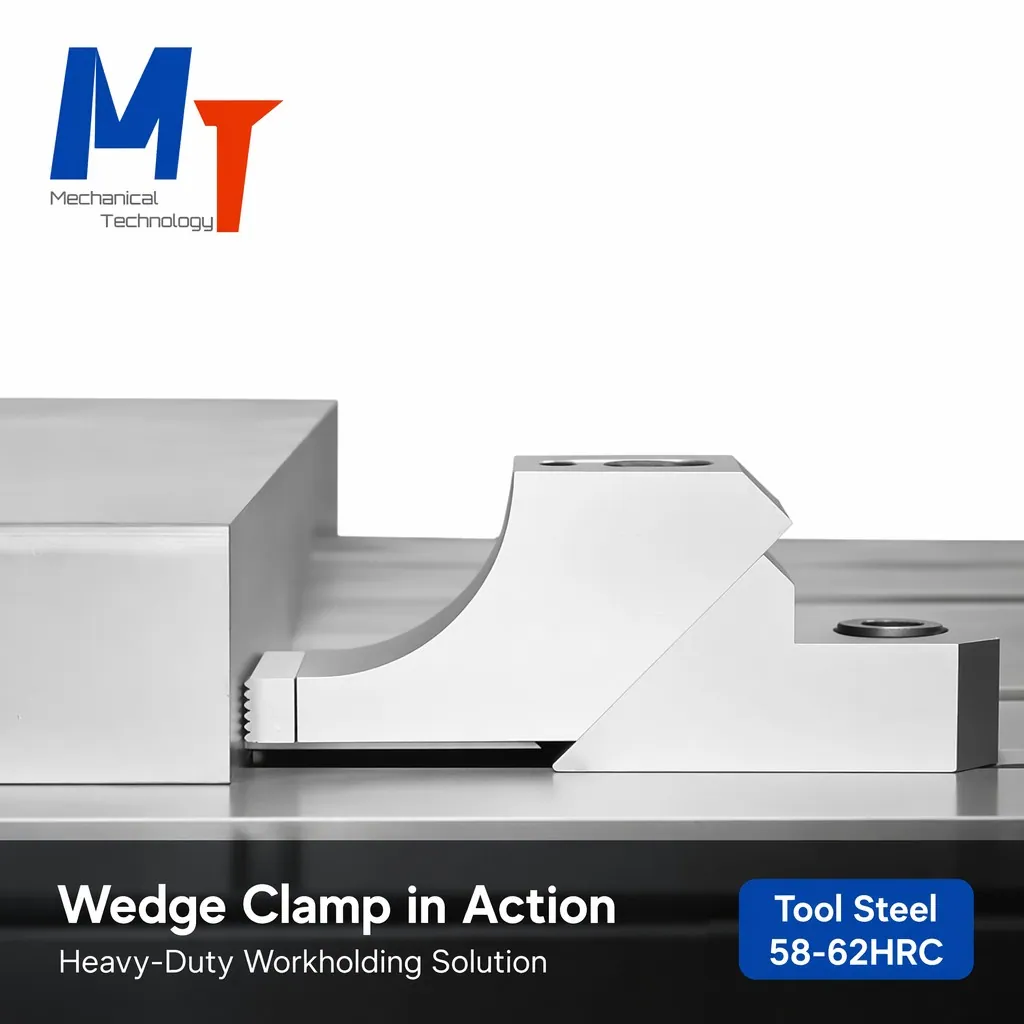

In Action
SERVICES
One-Stop Manufacturing Services
Need Custom Sizes or a Bulk Quote?
We support OEM/ODM, non-standard sizes and fast sampling with a 1pc MOQ.
